Printing · Printed sheets · Horizontal direction change

A continuous powered route through a horizontal turn

A NEXUS Curve Conveyor turning printed products between two conveying sections on a working line.

Printed sheets carried on a dark modular belt curve conveyor, leaving a printing machine on a working line.
On-site production Printed sheets leaving the press on the curve.

The project

What the line needed, and what NEXUS did.

The requirement

A printing line needed to redirect products between conveying sections while maintaining a continuous powered path through the turn.

The engineering response

NEXUS supplied a Curve Conveyor using a modular plastic belt. The turn geometry and end connections were configured around the production-line route.

Photographs

Installation views

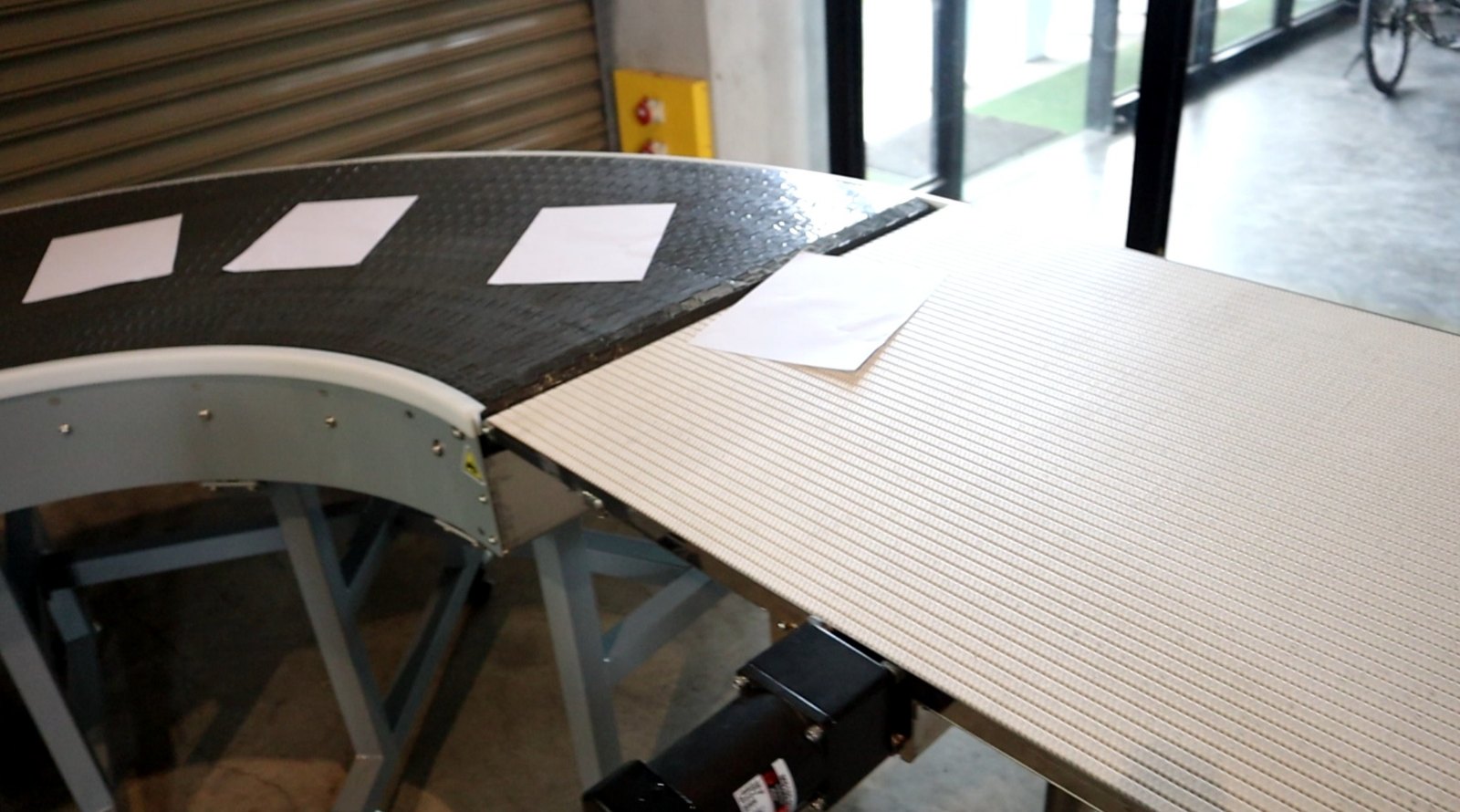

  • Close view of the modular plastic belt on a curve conveyor, with sheets of paper resting on the surface, in the NEXUS factory.
    Factory build and test The modular plastic belt, and the connection to the adjoining straight section.

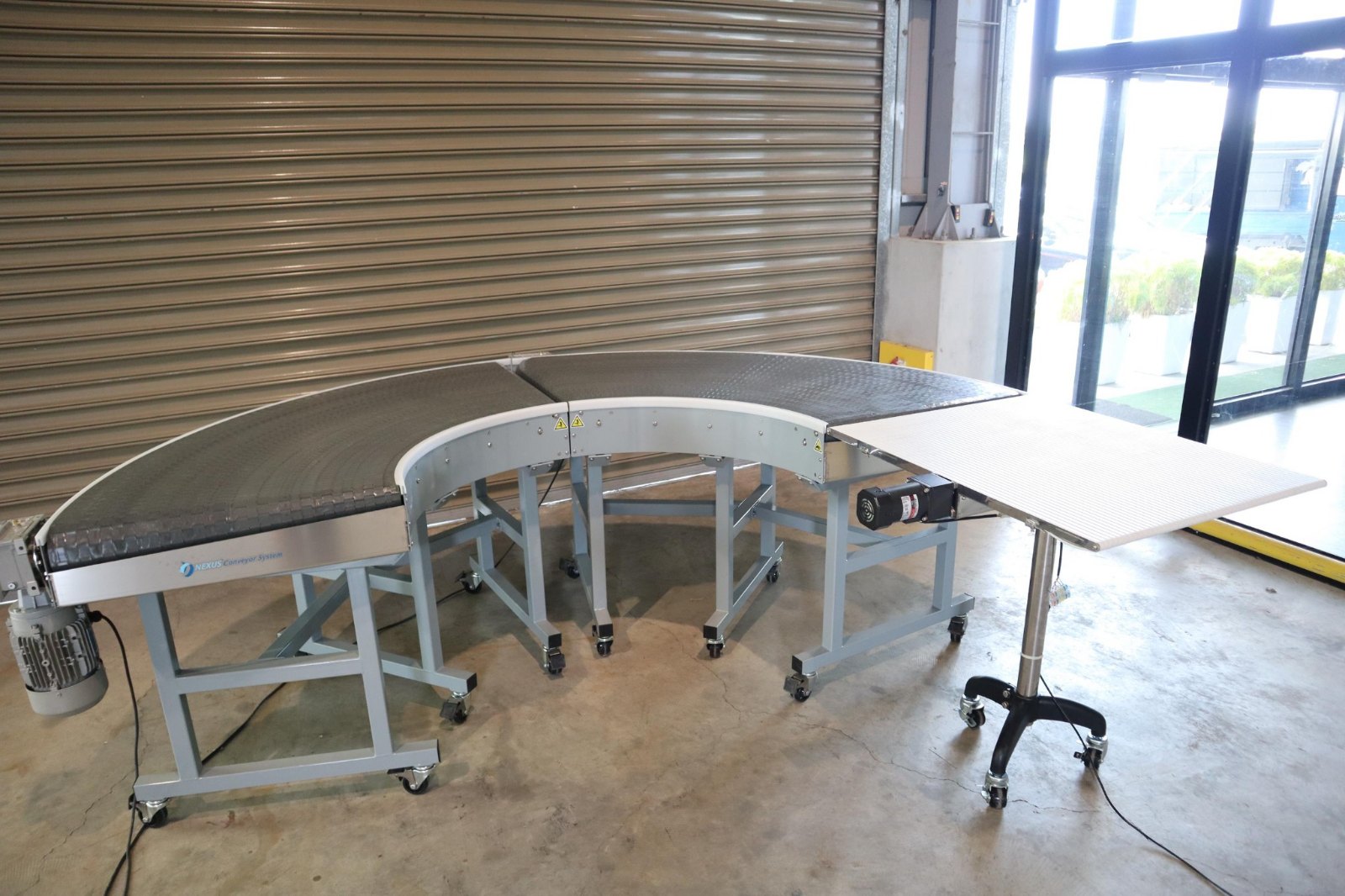

  • A complete curve conveyor on castors in the NEXUS factory, with a straight infeed section connected at one end.
    Factory build and test The machine complete, with its infeed section connected.

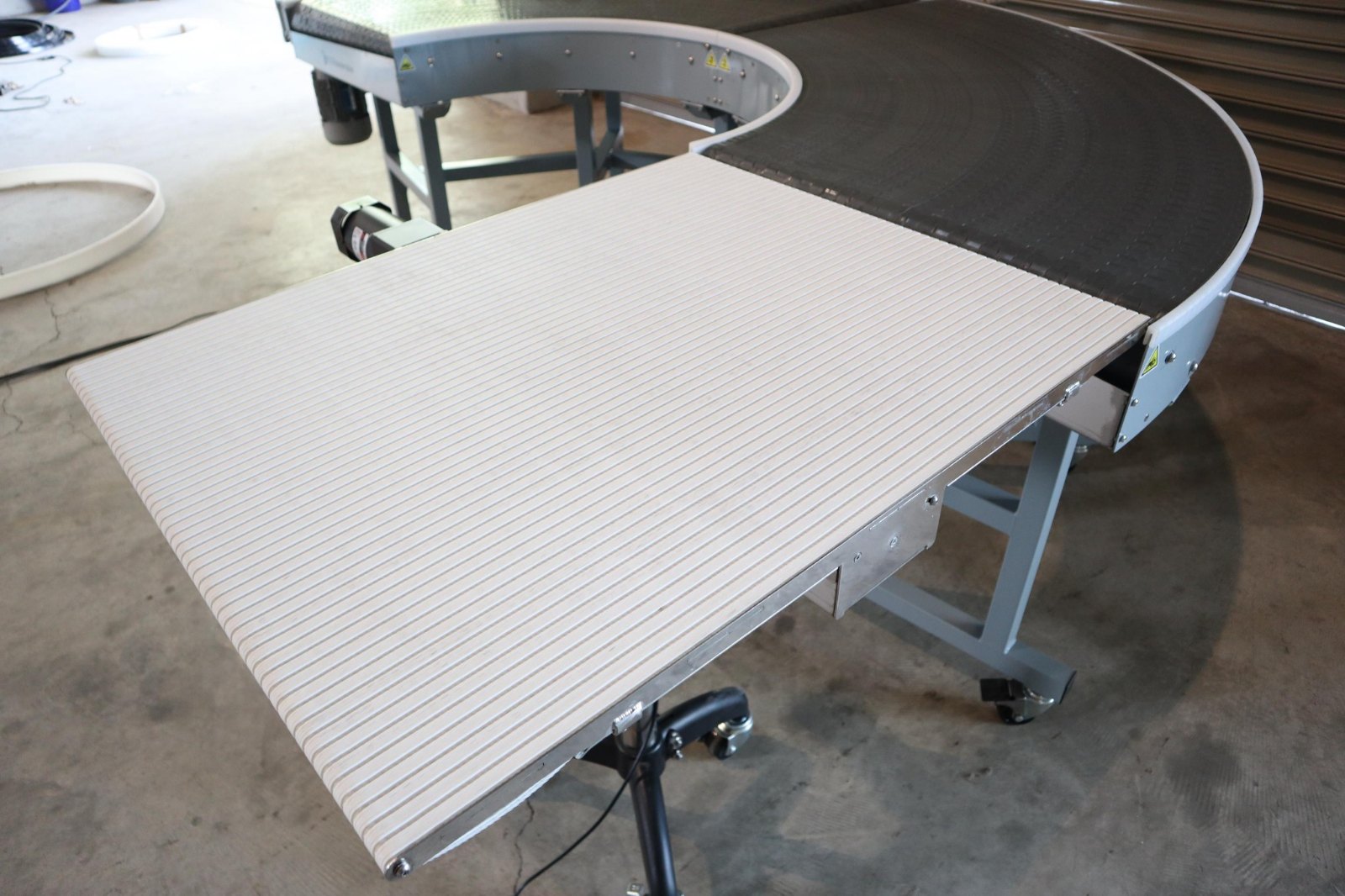

  • A curve conveyor photographed along the line of the turn, with a pale straight section running away from the curve.
    Factory build and test The turn geometry, configured around the route the line takes.

Details

Project facts

Industry
Printing
Goods
Printed sheets
Application
Direction change between conveying sections
NEXUS solution
Curve Conveyor with a modular plastic belt

Related product

Related NEXUS solution
