Spiral Conveyors
Spiral Accumulation Conveyor
A spiral where product gathers on the track, keeping flow between two process steps.
The machine
The turns of the spiral become the accumulation length, so the capacity sits in the footprint the machine already occupies. Spiral accumulation conveyors provide temporary product holding capacity between production stages.
Best suited for
- Bottles and cans that have to gather before the next step, such as cooling or sterilisation
- Lines with no floor space for a long horizontal accumulator
-
Application example
Beverage cans

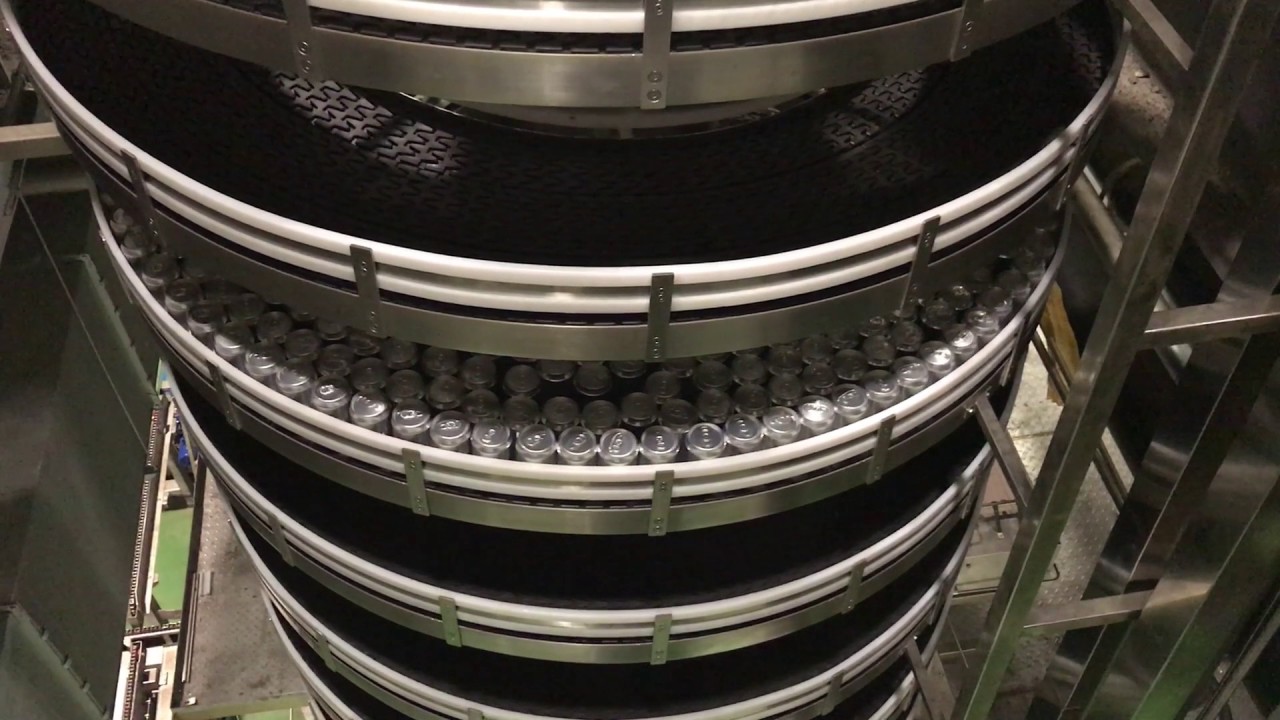

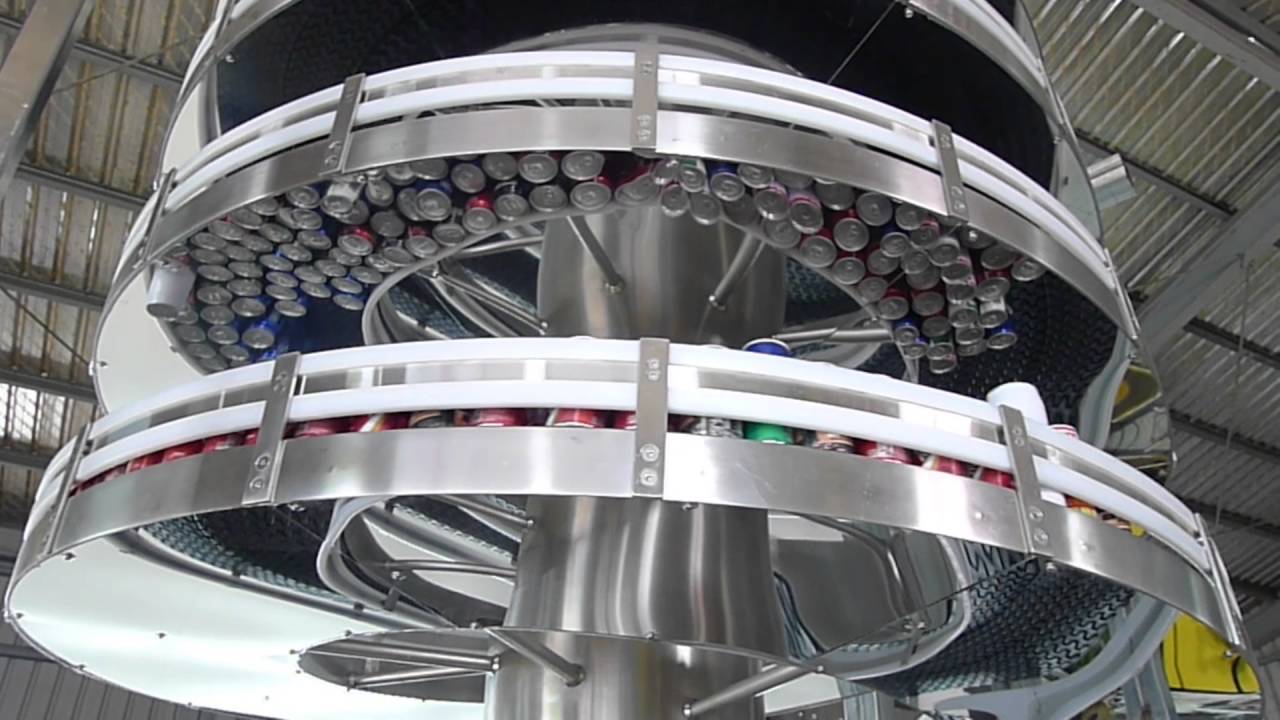

A spiral accumulation conveyor holding beverage cans in a dense queue between two production stages.
Technical data
Specifications and options
Figures are for the standard machine. Confirm them for your goods, layout and configuration.
Specifications
- Direction
- Upwards, downwards, or bidirectional in one machine
- Frame
- Stainless steel, or painted mild steel
- Load capacity
- Load capacity is specified for the product and conveyor configuration.
Inlet & outlet configurations
Choose the inlet and outlet arrangement to suit your line.
Discuss your application
Send us the product dimensions and weight, required throughput, elevation change, available footprint and the equipment at either end. NEXUS will configure the conveying system around your line.
